Urban Guardrail End Safety Facility Solution

R & D background

The function of this traffic barrier is to protect vehicles and people in vehicles from collisions with natural or artificial objects located next to the road. However, in fact, these safety barriers have caused some damage to vehicles and personnel while playing a protective role in accidents.
Since most guardrails are made of iron sheets or steel pipes to achieve a strong purpose, once the vehicle collides with the guardrails, the windows, and the front windshield are very likely to be pierced by steel pipes, which is dangerous to the people in the car, causing serious secondary injuries.
Therefore, many guardrail ends are equipped with steel columns or anti-collision barrels to reduce injuries, but the steel columns are not elastic and are often damaged by scratches. There are also hidden dangers to pedestrians and vehicles and need high maintenance costs.

accident case6

OrangePlas has developed a flexible energy-absorbing anti-collision post, made of high-resilience PU material, with built-in industrial buffer, which can withstand a maximum of 2000KG car impact at a speed of 40Km/H.

01-Flexible TPU Post

This Flexible Warning Post is developed by OrangePlas to increase the safety of the Road Isolation Barrier Zone. It is made of high resilience PU material with a super large Diameter design. Compared with traditional steel columns, this post has great flexibility, can withstand a certain impact without damage therefore effectively reducing the hurt to vehicles and personnel. The impact bearing capacity is a 20,000Kg car at 40KM/H.

Features:

A large area of 3M HIP reflective film pasted on the post increase Warning Effect
6 Cat-Eye beads in the Base increase Night Visibility
Screw fixing Design for better Remove or Replacement of the base

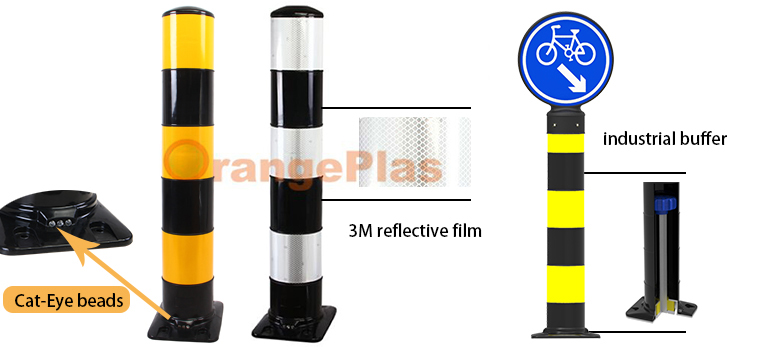

Flexible TPU Post1
OrangePlas Flexible TPU Post

Testing Video

02-Flexible lane separation sign

Features

1.Composed of engineering elastic parts and directing signs
2.Fix Embedded parts, 4 bolt holes at the bottom for fixing the sign on the ground
3.Use 3M HIP reflective film to increase Warning Effect and Night vision ability
4.Impact-resistant can rebound quickly after being run over
5.withstand temperature -20~60℃
6.Color can be customized

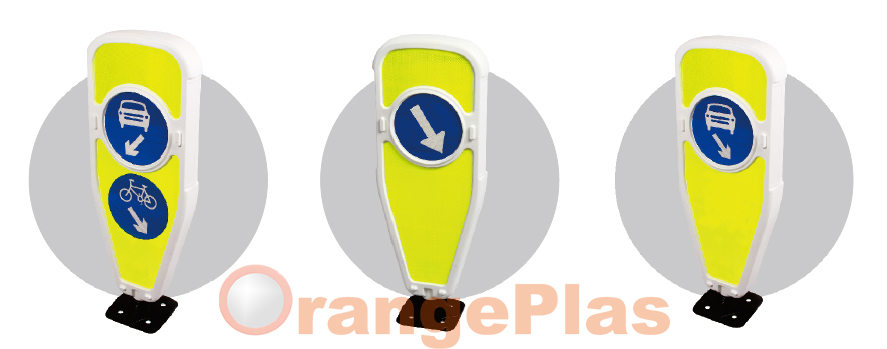

OrangePlas Flexible lane separation sign

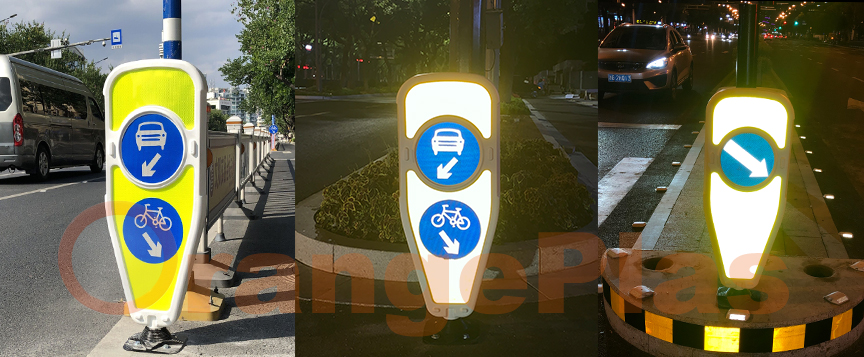

OrangePlas Flexible lane separation sign in night

03-Bike lane flexible signs

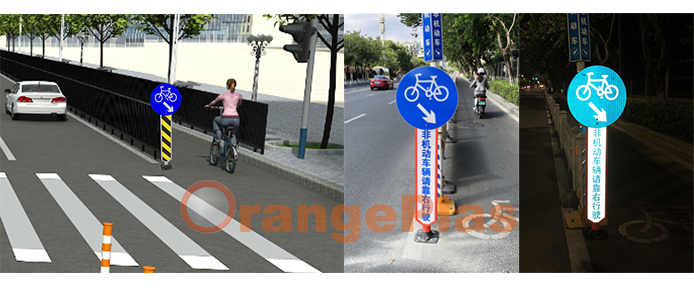

OrangePlas Bike lane flexible signs

Features

1.PE panel and signage, customized content and color
2.Use 3M HIP reflective film to increase Warning Effect and Night vision ability
3.Impact-resistant can rebound quickly after being run over
4.weather resistant, suitable for cold or hot environment

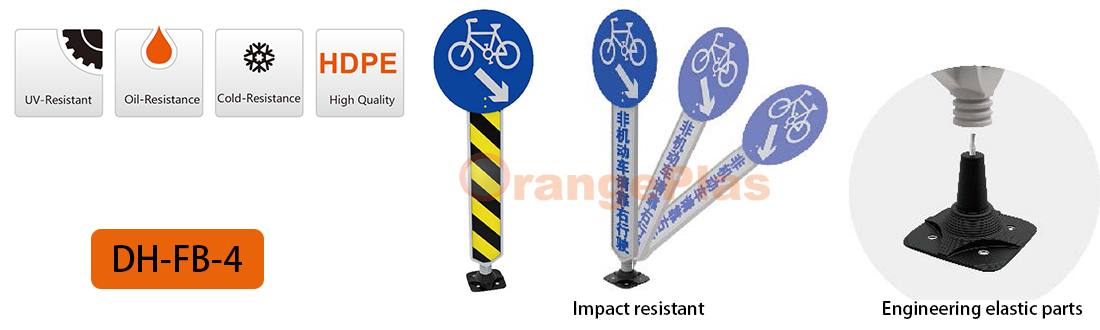

OrangePlas Bike lane flexible signs 2

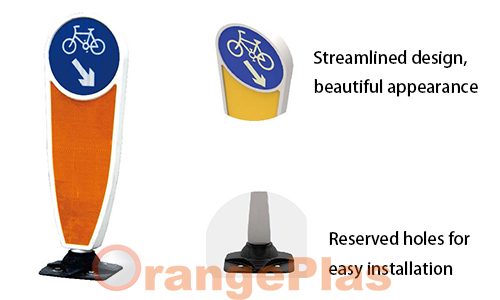

OrangePlas Bike lane flexible signs 3



This product has a streamlined design for the elastic panel, which is round and smooth on the surface. In addition, the bottom engineering components have ultra-high resilience, which will not cause damage to personnel or vehicles if impacted when necessary. And the large-area of 3M reflective film provides a better night warning effect. By the way, a smaller base size is suitable for more road scenes. Weather-resistant, Impact resistant, high temperature and cold resistant.
